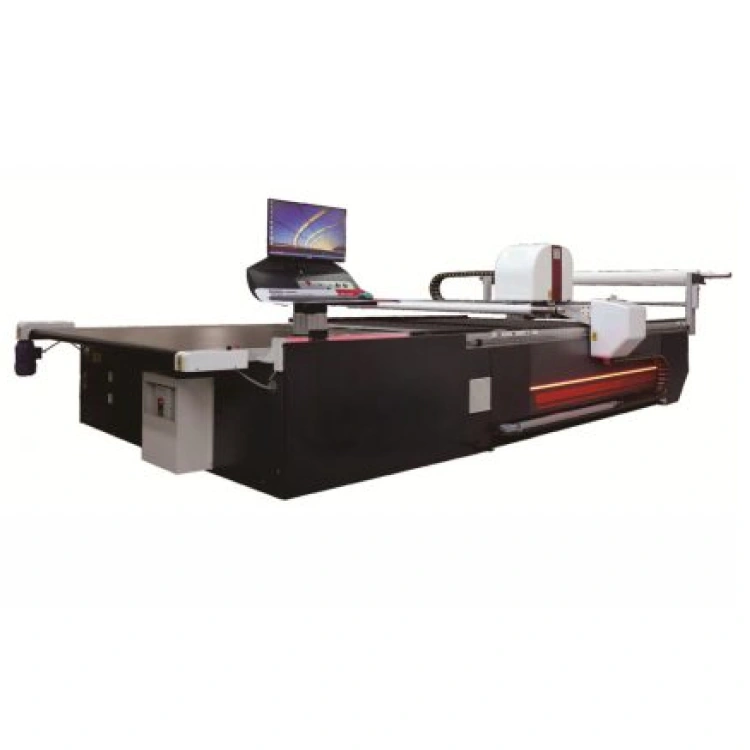

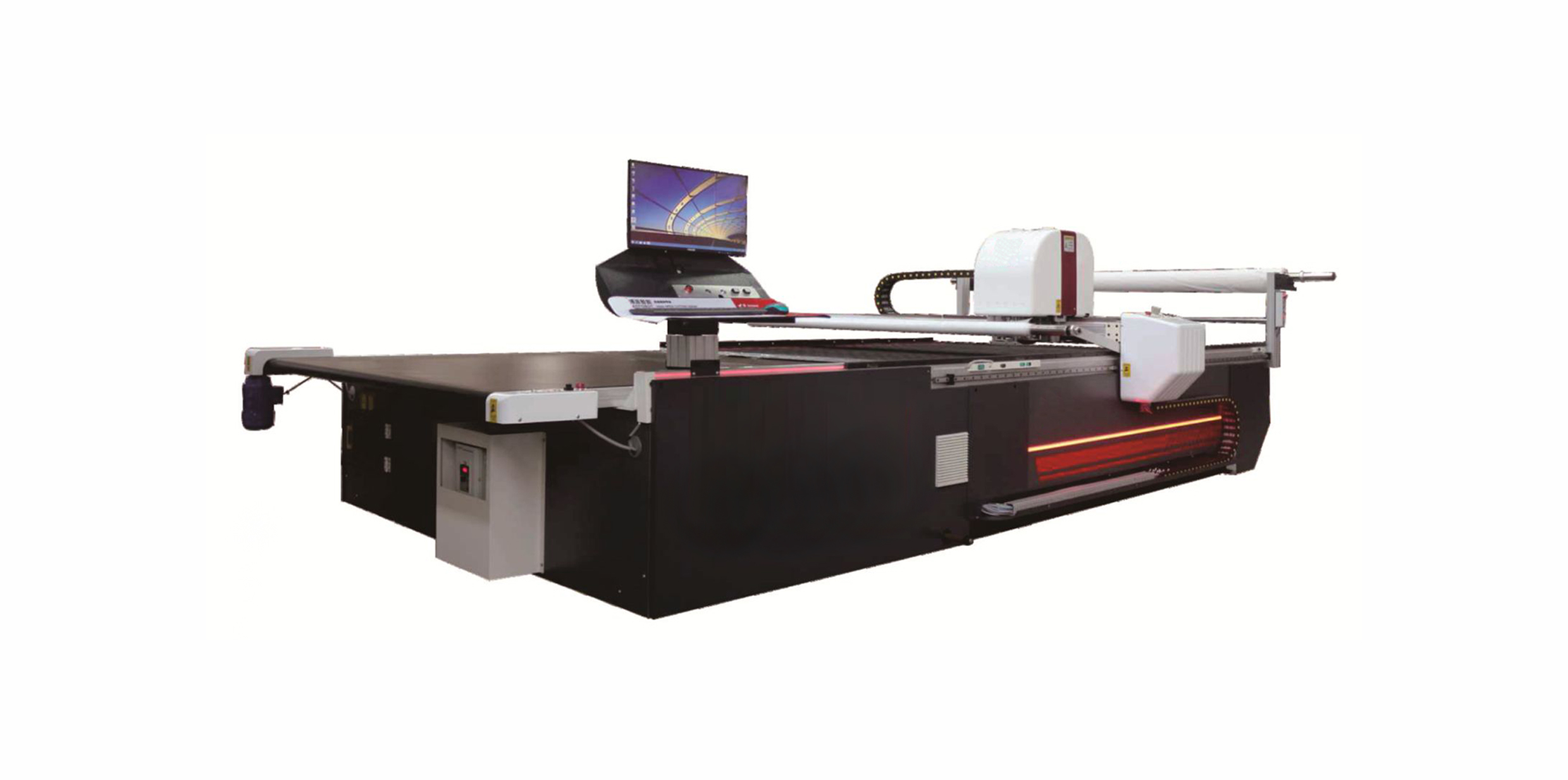

Multi-layer CNC Fabric Cutter
Product Features:
1. Intelligent dust collection system extends equipment life and reduces consumable usage.
2. Cover film driven by synchronous belt, gear, and rack for stable and noiseless operation. Flexible winding covering
film ensures smooth performance.
3. Newly designed X-axis servo drive provides stable cutting, lower noise, and reduced vibration.
4. High-efficiency energy-saving vacuum pump decreases equipment load and energy consumption.
5. Hardware can be customized to specific production requirements, while software is fully tailorable for customer
needs.
| Parameter | Value |
|---|---|
| Model | SB-ACS-200 |
| Equipment Dimension | 5500×2900×1500 |
| Working Table | 2600x2000mm |
| Effective Cutting | 2500x2000mm |
| Picking Table | 2200×2130mm |
| Power | Three-phase 380V / 22KWA |
| Required Compressed Air | 0.5-0.7MP, 60L/min |
| System | Windows 7 or 10 |
| Cutting Method | Straight knife reciprocating clipping |
| Cutting Speed | 108m/min, 6m/min (according to different fabrics) |
| Knives | Auto sharpening, Knife Width 8mm, Thickness 2.0mm, 2.5mm |
| Maximum Movement Acceleration | 1G |
| Vacuum Method | Separate frequency conversion absorption |
| The Noise | <80db |
| Maximum Adsorptive Power of Vacuum | 18-20kpa |
| Maximum Cutting Thickness | 5-9cm (according to the model) |
| Weight | 3600kg |
