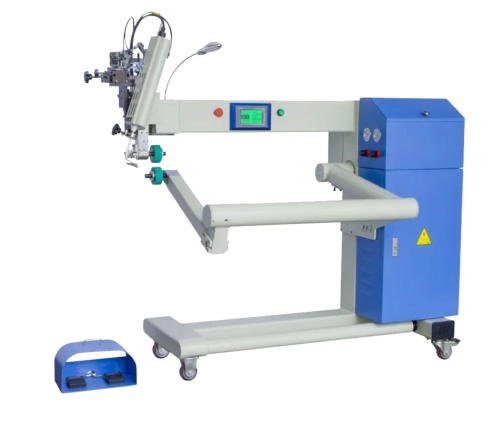

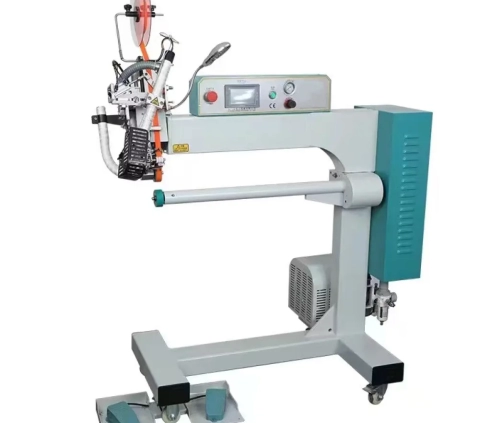

Economical production of water-proof products such as Rain-wear, Ski-wear, wet/dry suits, tents, car covers, etc. Seam sealing applicable to a large variety of fabrics such as pu, pe, pvc, neoprene, ac, etc. It can be used for long, straight, and curved seams of all kinds on sheeting and coated materials with a thickness of 0.2mm and more.
Technical Parameters
| Model |
S-2717 |
| Power consumption |
AC~220V 50Hz 3000W |
| Heater power |
2000W of the special heating element |
| Heat control |
Infinity variable up to 700°C |
| Speed |
2~24m/min infinity variable |
| Air supply |
0.35~0.5Mpa |
| Width of pinch roller |
25mm standard with options for points engraved and striped roller |
| Width of tape |
Standard 14mm~22mm, other optional |
| Upper roller lift |
18~25mm |
| Prevention against jumping over sewing work |
There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting or when the gun moving outward with the idle wheel stopping. |
| Exterior size |
1300mm(L) x 1600mm(W) x 1530(H) |
| Net weight |
140kg |
