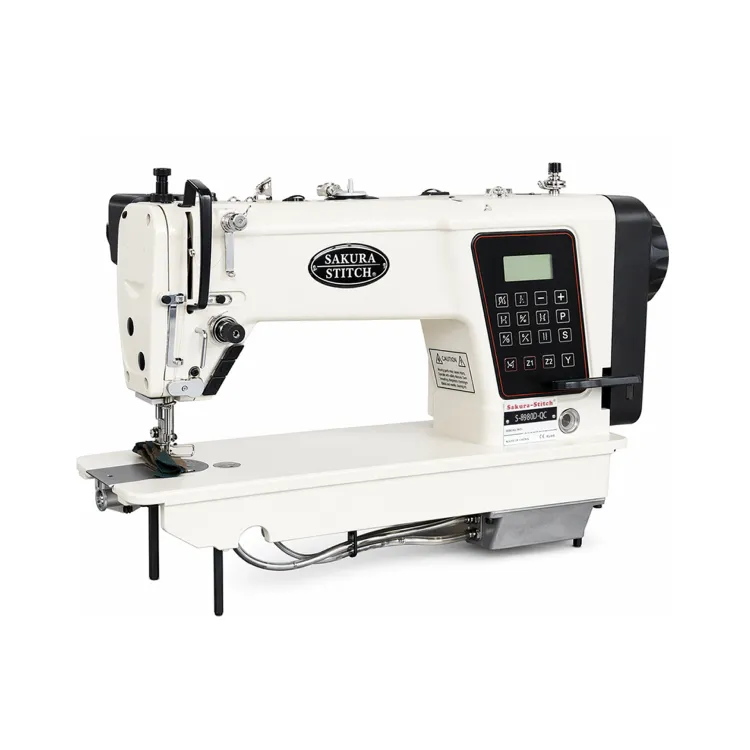

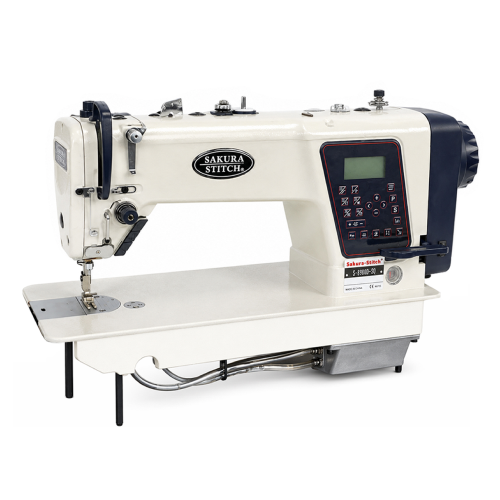

openHigh Speed Semi Dry Direct Drive Single Needle (Electronic Stitch Distance, Short Cut) Lockstitch Machine with Full Auto Function

HIGH SPEED SEMI DRY DIRECT DRIVE SINGLE NEEDLE (ELECTRONIC STITCH DISTANCE, SHORT CUT) LOCKSTITCH MACHINE WITH FULL AUTO FUNCTION

Model No: S-8980D-SQ

Share
Category
Tags, , , , ,

    This type of single needle lockstitch machine is further equipped with extra motor to control the stitch distance and double action thread trimming system to allow up to 3mm short cut during the thread trimming process. It also has all the basic automatic functions such as auto thread trimmer, auto reverse, auto wiper and automatic foot lifter.



    HTML Table

    Needle System DBx1 (#14)
    Speed 5000 SPM
    Power 550W
    Voltage 220V – 1PH
    Max. Stitch Distance 5mm
    Max. Presser Foot Lift Height 5.5mm / 13mm
    Needle Bar Stroke 30.7mm
    Packaging Dimension 700 x 270 x 560mm
    NW / GW 40kg / 47kg



    Brand

    Sakura-Stitch
    Model

    S-8980D-SQ
