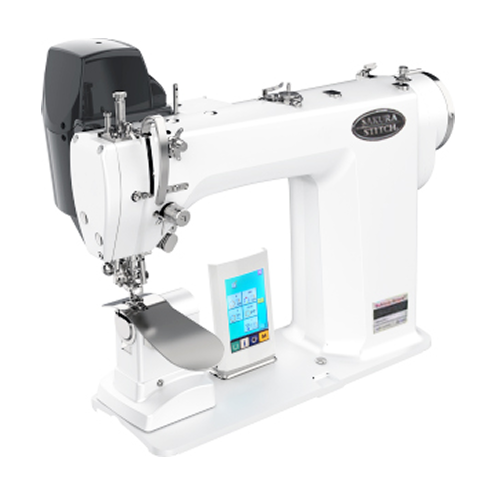

Touch-sensitive type LCD, Easy Operation, Improving Performance.
Belt feeding, prevents an abrupt change in the shirring amount.
Dry head, Easy maintenance, Ensure clothing clean.
The machine comes with the direct-drive system, in which a compact AC servomotor is directly joined to the main shaft. It offers a quick startup, increased stopping accuracy and excellent responsiveness.
Increased lift of the presser foot, easy for removal of a finished portion.
Stitch length is increased, an adequate shirring amount is ensured even when a heavy material is used.
| Max. Sewing Speed |
3500stitch/min |
| Feed System |
Intermittent belt feed with the direct driven stepping motor |
| Stitch Length (Both top and bottom) |
1.5-6.0mm |
| Needle bar stroke |
30.7mm |
| Needle |
DPx17 #10-#14 |
| Thread take-up |
Link type |
| Hook |
Horizontal axis fully rotary non-lubricated hook |
| Presser foot lift |
by hand : 5.5mm, Auto : 10mm |
| Amount of alternating vertical movement of presser foot and walking foot |
Max. 3.5mm |
| Adjustment of amount of the alternating vertical movement of the presser foot & walking foot |
Adjustment of stopping position in slot |
| Bottom and variable top feed stitch adjusting method |
Data entry trough the operation panel; stepping motor |
| Min. resolution of bottom and variable top feed adjustment |
0.1mm |
| Number of programs that can be input |
99 programs |
| Number of steps that can be input |
30 steps |
| Lubrication |
No lubrication |
| Needle thread tension |
Active tension |
| Right and left alternating sewing |
possible |
| Automatic reverse feed function |
provided as standard |
| Soft-start function |
provided as standard |
| auto lifter |
provided as standard |
| Power requirement |
200-240V, 560A |
